$10.50

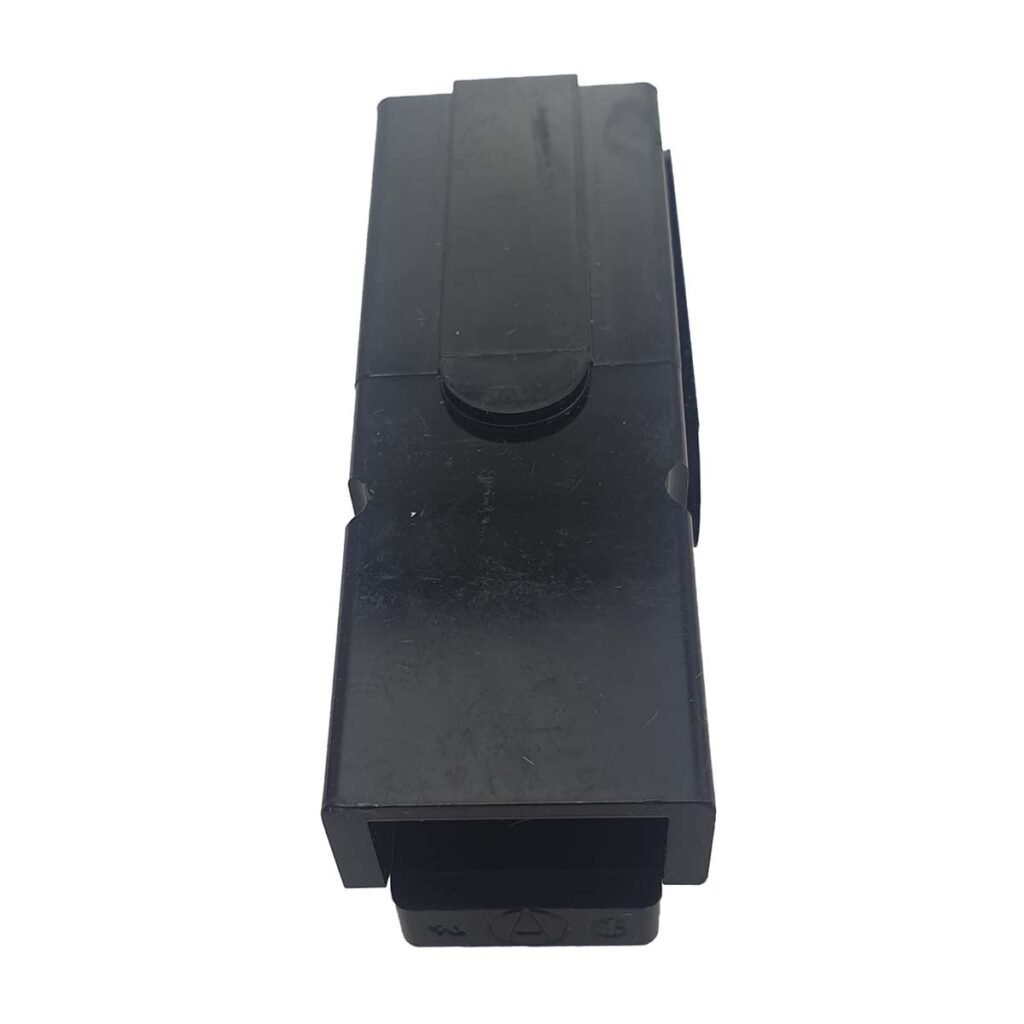

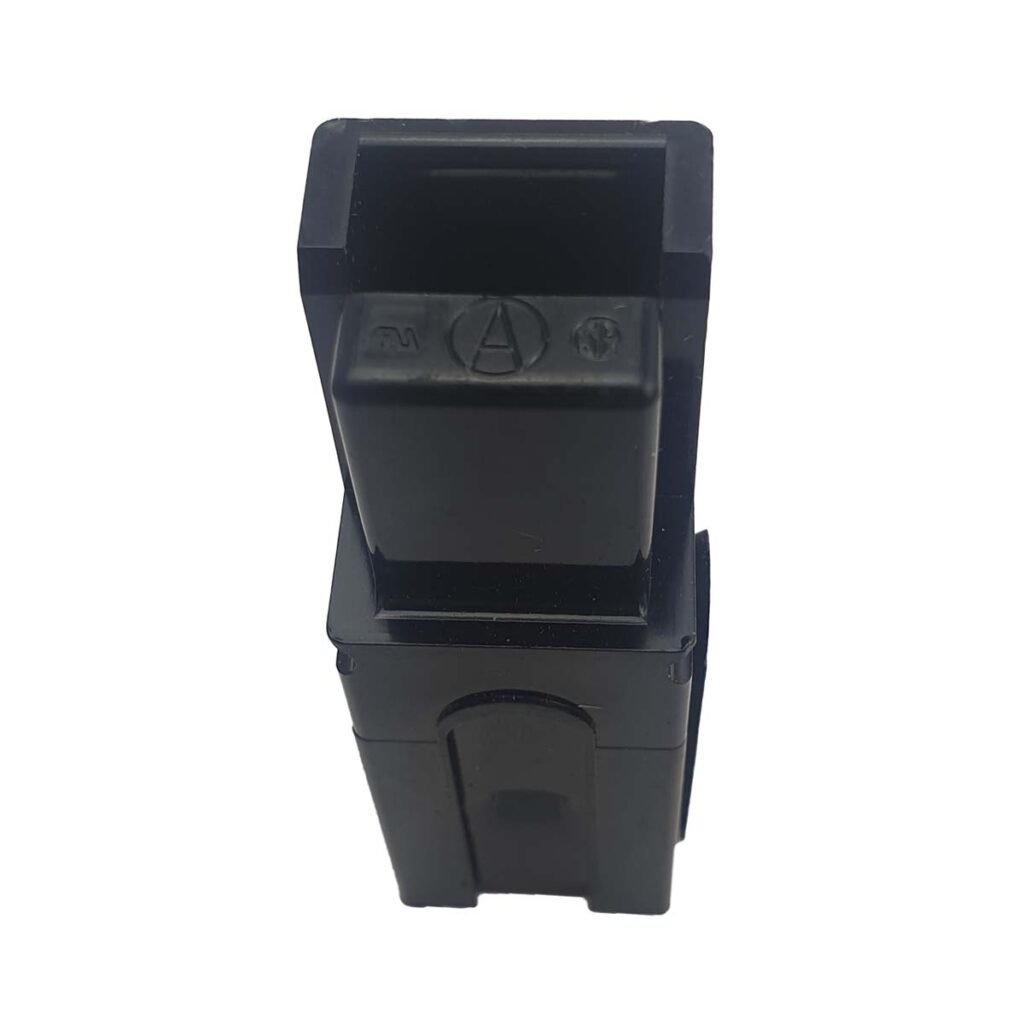

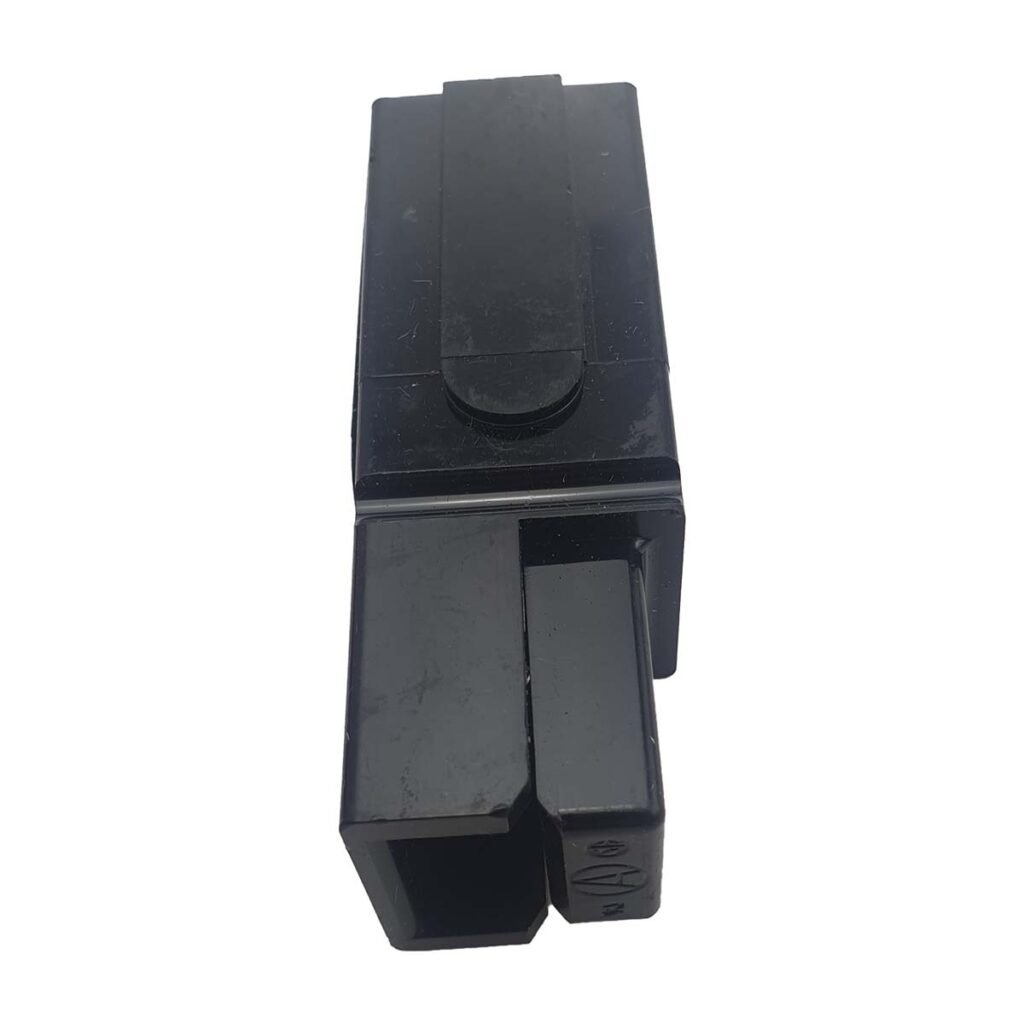

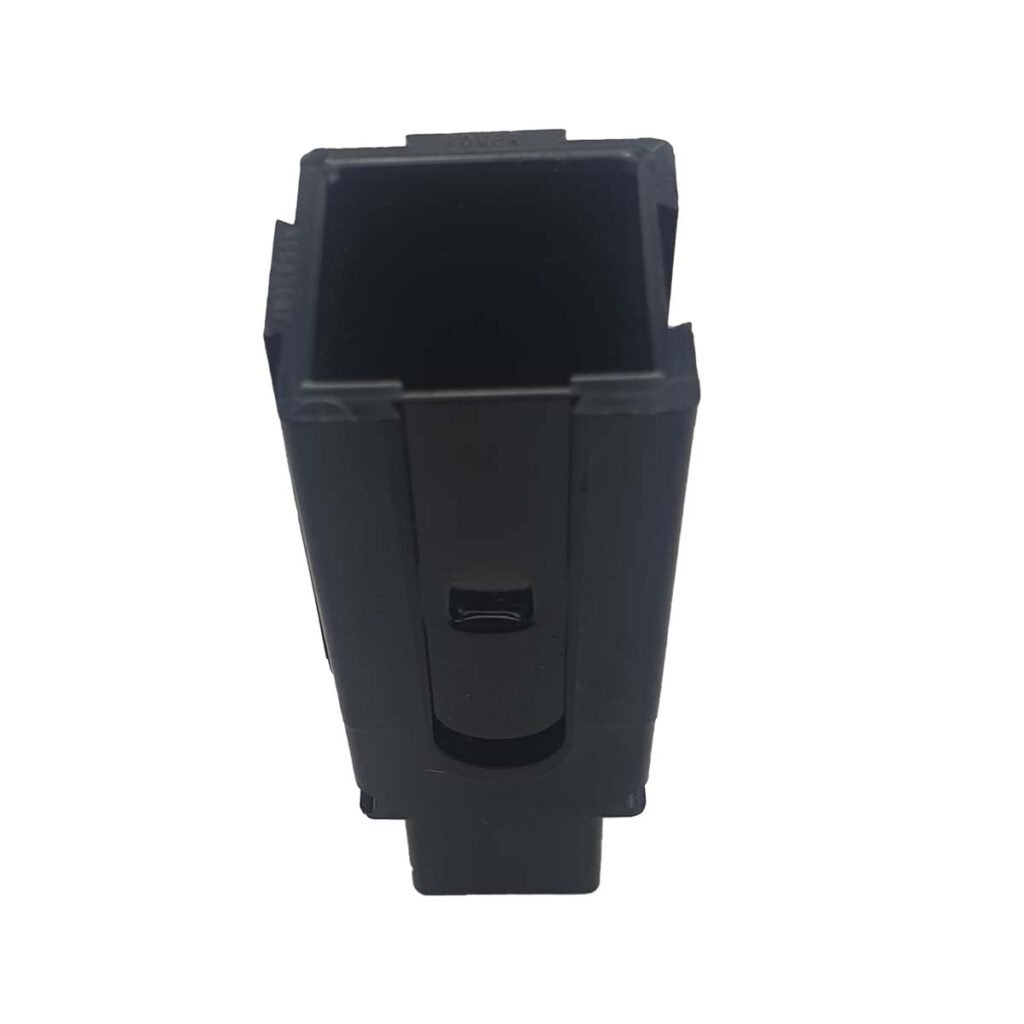

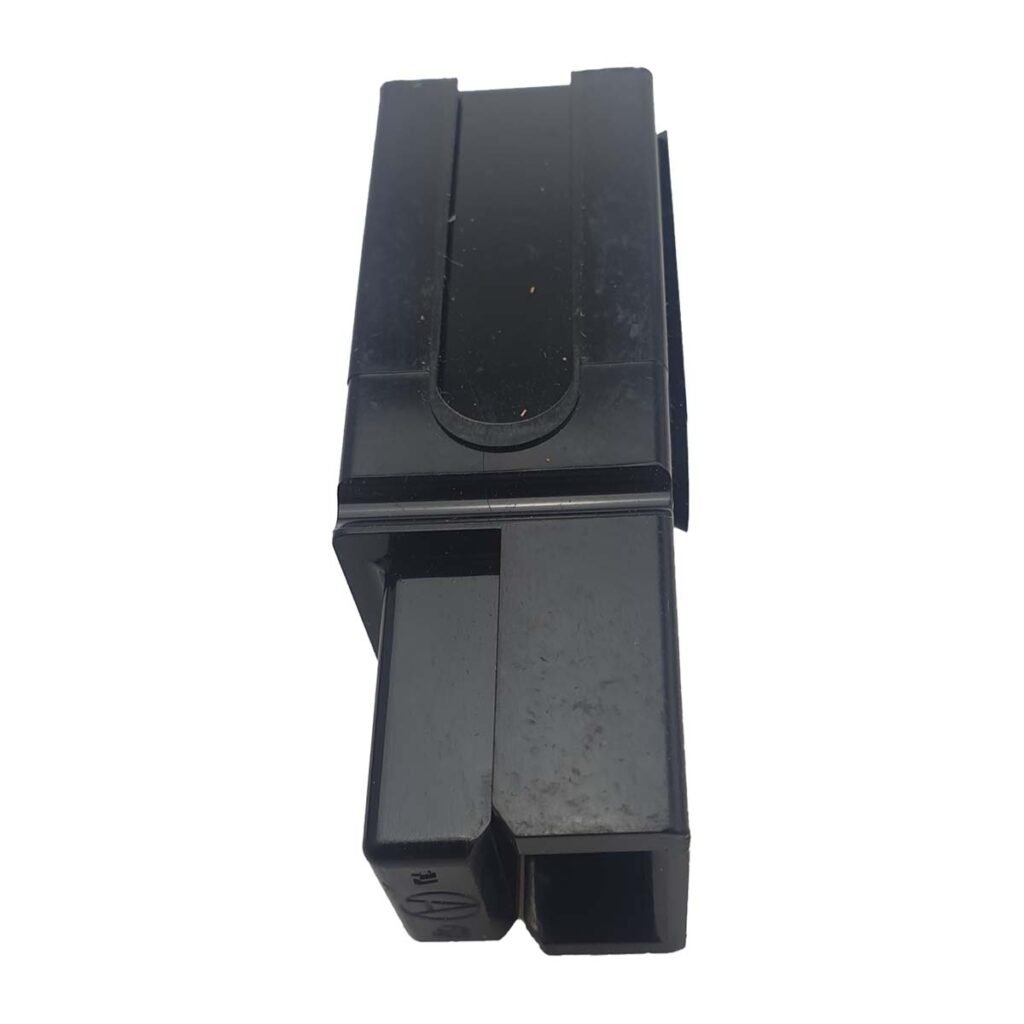

Anderson PP180A Housing for up to 1/0 BS cable. This is a single pole heavy duty connector for cable from 10 to 2/0 AWG. Amp rating of 150.1 – 500.0A.
The 180 Amp Powerpole is for single cable connection.
Suitable for cable sizes up to 1/0, these connectors have sleeves on the sides allowing for the connectors to be joined and blocked as needed.
| Amperage Rating | 150.1 – 500.0A |
| Colour | Black |
| Housing Gender | Genderless |
| Housing Material | Polycarbonate |
| Mounting Type | Cable |
| Oper. Volt (AC) | 600 |
| Oper. Volt (DC) | 600 |
| Positions | 1 |
| RoHS | Yes |
| Wire Size (AWG) | 10-1/0 |
Color: Red, Black
Contacts: None, 175/180 2/0 contact each, 175A 1/0AWG contact each, 175A 1AWG contact each, 175A 2AWG contact each, 175A 4AWG contact each, 175A 6AWG contact each
