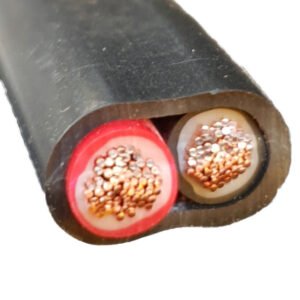

8 AWG (B&S) twin core Red and Black Cable
This cable is classed at 8 B&S. It is 7mm2 and has a Max Continual Duty Amperage of 45 Amps.
Twin core with an insulation sheath around the cables.
**Duty amps specified are nominal only at 60% duty cycle over 5 minutes; Derating factors will have to be applied certain installations.
For intermittent duty, the battery cable will carry 200% of its rated ampere capacity.
Specifications
| Part No | EBS8 |
| Nom. Area mm2 | 7 |
| Stranding No./mm | 100/0.30 |
| Nom. O/D mm | 5.6 |
| Insulation Thickness mm | 0.9 |
| Continual Duty Amps# | 45 |
| Voltage Drop A/m | 10.4 |
| Load Amps | 8.8 |
