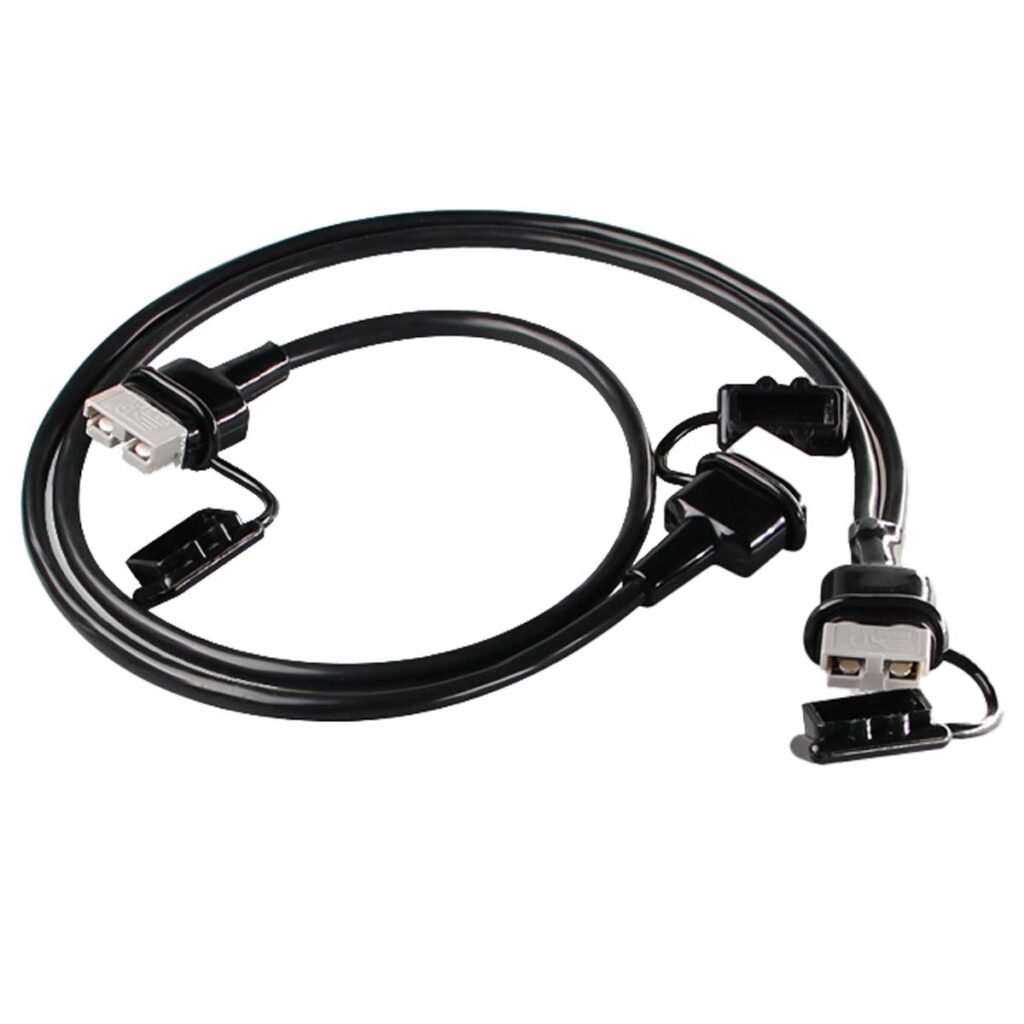

Anderson 50 Amp 1 drag 2 with Dust Cover 2.5m2 cable .9M
This cable is constructed from twin core 2.5mm2 cable (AWG 14). There are 2 of these cables. Each connected from the single Anderson Style Connector to either of the dragged Andersons Style Connectors. Each Anderson is also protected by and Anderson cover to keep dirt, dust and water out when not in use. This cable is capable of supplying 20 Amps load per output Anderson and is a useful for running 2 appliances, using one Anderson as an input for solar and the other as an output for fridges or other appliances or devices which connect through an Anderson connector or any use you can think of where the load is not more than 20 Amps.
The Anderson style connector will be compatible with all Grey or Black 50 Amp Anderson connectors.
Specifications
Cable Size | 14 AWG (2.5mm2) |
Fittings | Single Andersons Style 50 Amp to
two (2) split Anderson Style 50 Amp |
Colour | Grey Anderson |
Fitment Type | Crimped and Covers |
Length | 900 mm |
Recommended Maximum Load | 20 Amps |
Max Amps Critical Load Distance | 1.8 Meters |
Max Amps Non Critical Load Distance | 6.1 Meters
|
